Zenith Safety Systems Manufacturer
Established in 2004, Zenith Safety System is a leading manufacturer of the technically advanced pressure relief products (rupture disk and pressure safety valve), exclusively designed and developed for a miscellany of process, incorporating chemical, petrochemical, textile, petroleum, food and beverages, pharmaceutical, industrial gases, and other local industries as well as a global one. The solitary objective of the honor (Mr. Hari Panchal) behind the occurrence of the Zenith Safety System is to deliver unmatched pressure management life safety and equipment protection solutions that is excellent in protecting people, plants, processes and the environment.
Our Vision
To continually introduce technologically advanced pressure safety system that will maintain safety in the workplace and reliably meets and surpass industry standard expectations and thusly be the world’s renowned pressure safety experts.
Our Mission
To provide best in class pressure safety system, leading the way in safety, reliability and cost, accompanying with unmatched customer service and support.
Quality Assurance
We are committed to quality and conformance of our rupture disk and pressure safety valve to ISO standards is strong evidence of the same.

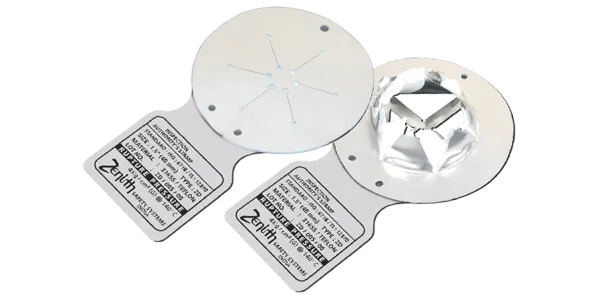

“ZD” RUPTURE DISK
This is a composite disk comprised of three part :
- A slotted metal top section is the pressure controlling element.
- A Teflon seal isolates the top section from the process.
- The slotted metal bottom section will withstand vacuum. The flat design minimizesthe possibility of the disk damage during installation. This rupture disk is suitable for Chemical Reactors, heat exchanger & in textile process house machinarises.

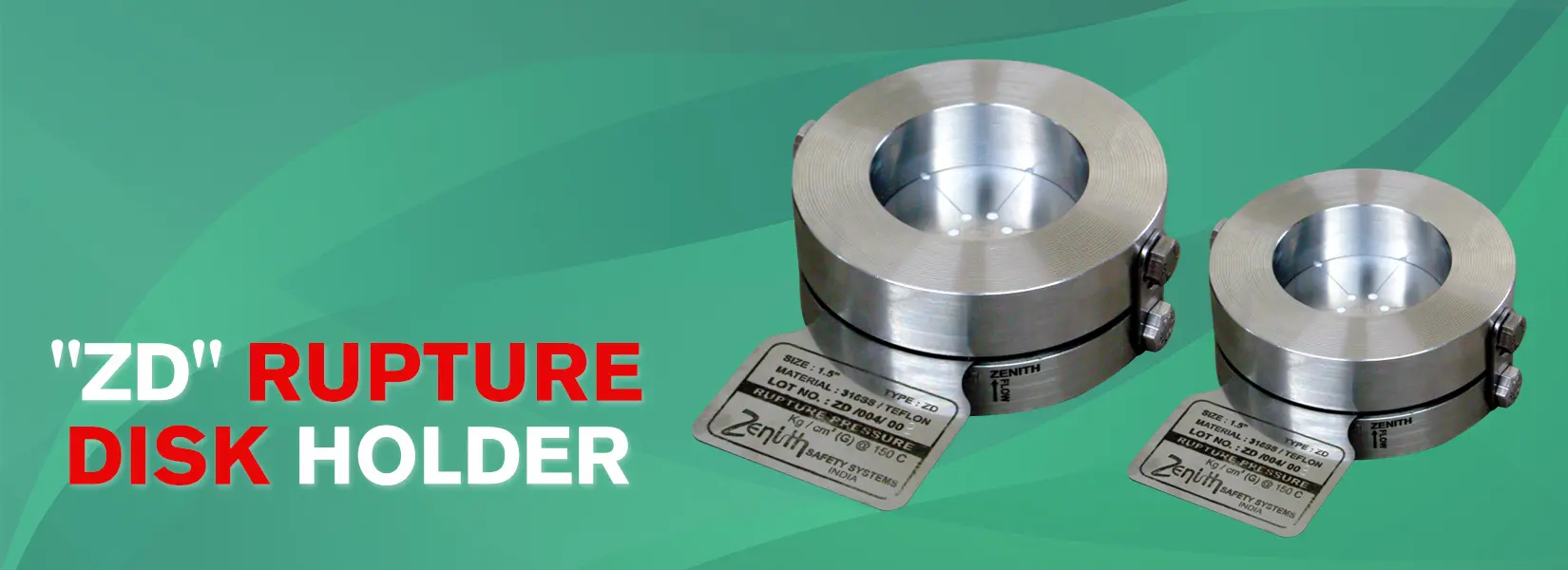

The simplicity of the ZD Rupture Disk holder design incorporates several features which allow easy installation. Asymmetric alignment pins in the Disk holder mate with location holes in the repture disk, thus eliminating incorrect installation and slippage. The flat set design in combination with a metal-to-metal ” bitetype” seal provides a leak-tight system. The ZD holder and rupture disk are easily pre-assembled with side lugs.
Available in S.S.304 & S. S.316

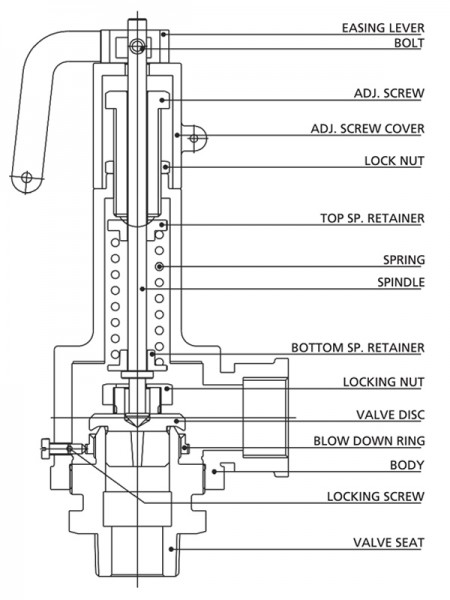

Safety Valve Pop Type-ZV
1.1 GENERAL DESCRIPTION
Safety valve model ZV is a high lift safety valve with stainless steel seat, valve body and internals suitable for use on steam, air and water. ZV is a pressure relief valve actuated by rapid opening or pop-action.
1.2 MECHANICAL SPECIFICATIONS
Available sizes : 20mm (under development)
25mm ( G Orifice )
40mm (J Orifice )
End connections : screwed BSPT
Limiting conditions :
Min. blow off pressure 1.0 bar g
Max. blow off pressure 14 bar g
1.3 OPERATING PRINCIPLE
The safety valve is normally set at a pressure which is 10% above the working pressure of the system. This is referred to as the set pressure, at which the oozing of the steam starts.When the system pressure reaches blow off pressure the safety valve opens to its full lift to discharge full capacity. The valve closes at reset pressure.
1.4 Manufactured and Tested as per ISO-4126-1.Third Party inspection by Bureau Varits.
Reach Out To Us And We’ll Respond As Soon As We Can
Our Rupture Disk and Pressure Safety valve is available in India and Overseas Countries too, to get additional information concerning our products and services, we are here to answer.
